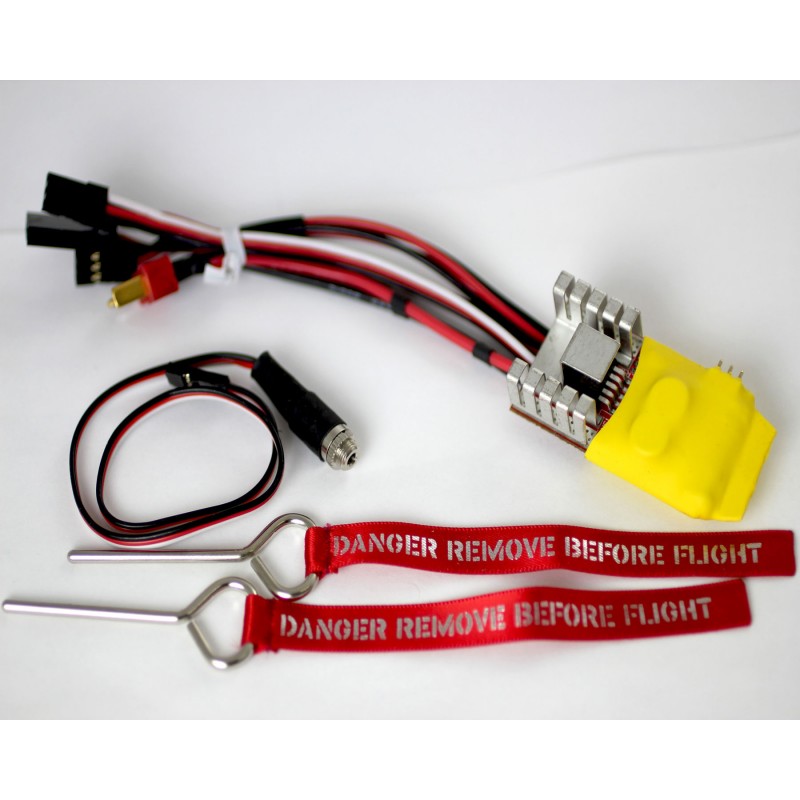

SIngle regulator capable of 5 amps continous load, 8 amp maximum load.  The regulator has a 350mV voltage drop at 5 amps.  Input voltage range is 5.5V to 8.4V.  It features dual output JR (universal) connectors for connection to the receiver.  The dual connectors reduce the connector voltage drop at high current loads.  It also features a Deans battery connector for very low input connector voltage loss.  In addition the unit comes with a Pin&Flag Failsafe Switch for turning the regulator on and off.  There is also a charge lead you can bring out to a charge jack (not included) on the side of the plane.  Its small size (1.5" x 1.0" x 0.5") and low weight (0.5oz) make it ideal for small glow planes up to 30cc gas planes.

Write a review

Please login or register to review

Regulator w/Failsafe Switch

  • Product Code: Reg02-FS-P&F
  • Availability: Out Of Stock
  • $49.95
