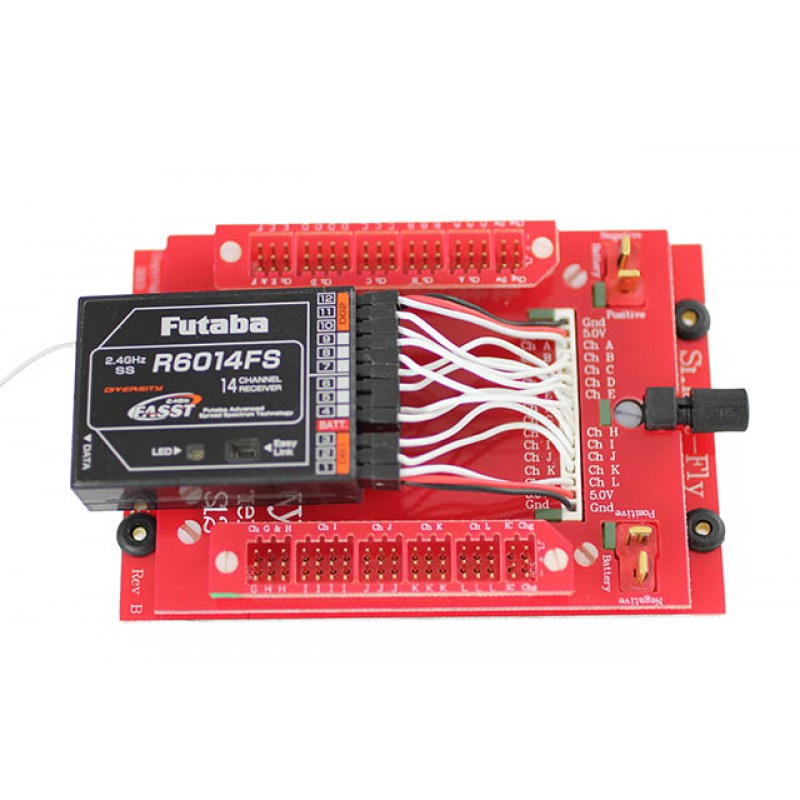

The PowerExpander Competition 12 can be used with any size aircraft.  It is primarily designed to work with the Futaba and JR 12-channel radios but any receiver with any number of channels can be used with the unit.  It supports an optional failsafe switch which enables or disables both batteries.  It can be used with 5-cell NiCd/NiMH, LiFe and 2S Li-ion/poly battery packs.  It has a dedicated 5.0V, 1 amp regulator for the receiver.   The unit also boosts the servo signal voltage to 5V for compatibility with all servos.  The unit also features a built-in Ignition Cutoff but is sold without the Cutoff Receiver and Fiber-optic cable for jet applications.

  • For any size plane
  • Up to 8.5V input depending on servo type
  • Builtin BatShare will isolate a bad battery or indicate a bad connection
  • Filtered and regulated 5.0V power to receiver
  • For any receiver with any number of channels
  • Twelve servo channels
  • LED indicators for servo and receiver power
  • Full RF filtering of all signals in and out of unit
  • Fully buffered signal line for each servo
  • Boosts servo control voltage to 5V
  • Long servo lead line matching
  • High-current Deans Ultra Plug power input connectors
  • Built-in Ignition Cutoff (sold without)
  • Optional Failsafe-switch operation
  • Light weight, 2.6 oz, 74g
  • Compact design, 4-1/2” x 3”

Write a review

Please login or register to review

PowerExpander Competition 12 Plus

  • Product Code: PE-2
  • Availability: In Stock
  • $154.99
